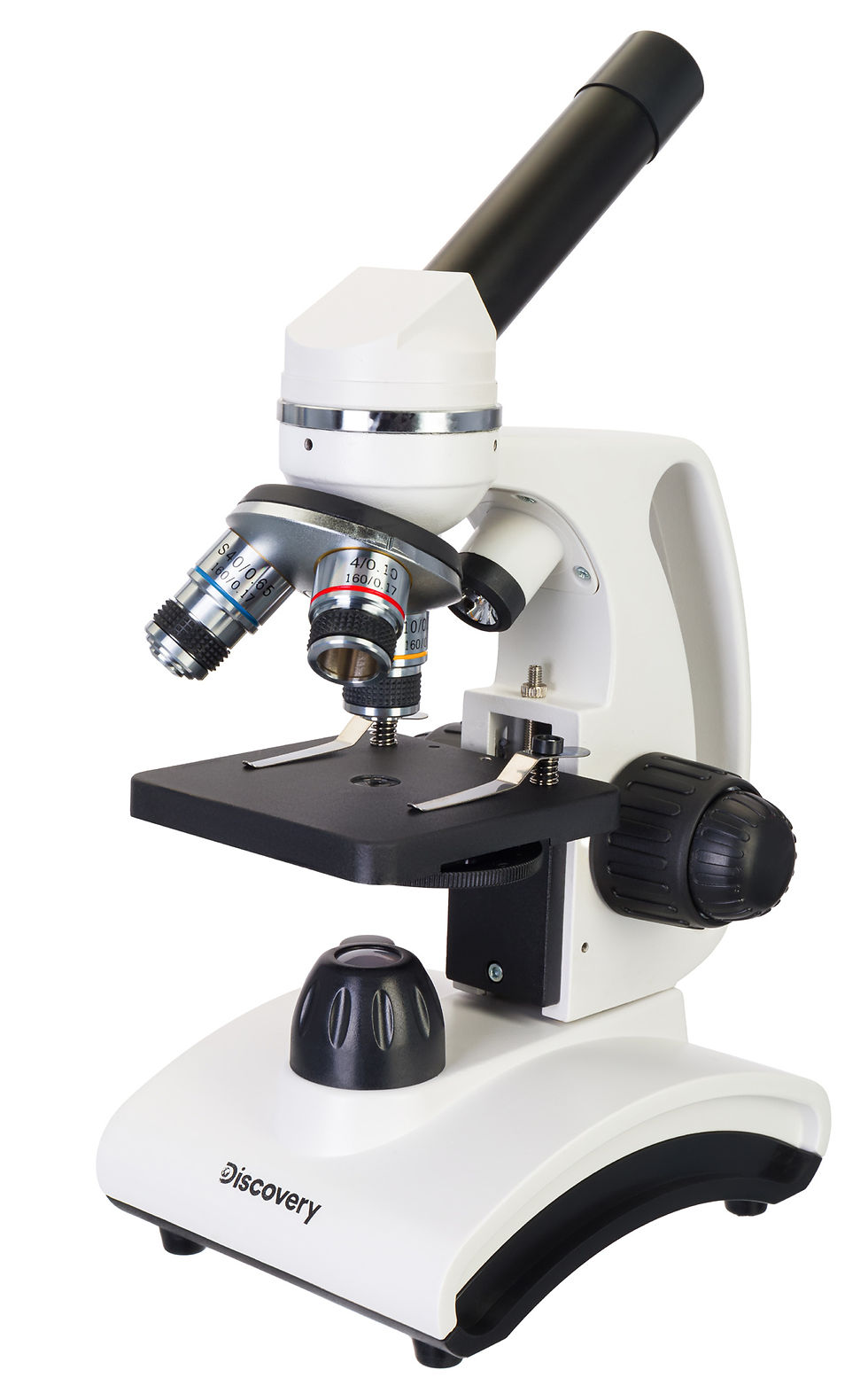

Levenhuk Microscope Discovery Femto Polar with book
The Discovery Femto Polar is a classic, monocular microscope that enables the examination of the microbial world in transmitted and reflected light with a magnification of 40x-400x. It can show plant and insect cell structure, life in a drop of water, protozoa, and much more. The microscope is an excellent classroom assistant for conducting simple biology experiments. An informative book about the microbial world is included. It makes experiments even more interesting and diverse.
Description
Achromatic optics enable a clear and detailed visualization of specimens. The device’s rotating head comes with three objectives: 4x, 10x, and 40x spring. The wide-field eyepiece provides clear viewing at 10x. The monocular head is inclined at an ergonomic 45° thereby making long periods of observation more comfortable. In addition, the head rotates 360 degrees above the horizontal plane, which is great for group experiments. The microscope doesn’t require moving to share an image with a partner as the head can be turned accordingly. It comes equipped with separate coarse and fine focusing knobs, thereby making the adjustment of the resolution smoother.
The illumination system consists of upper and lower LED illumination with brightness adjustment. The lower light enters through the disc diaphragm which also helps control brightness. The device can be powered by batteries (not included in kit) or plug-in (AC adapter included in kit). The stage comes equipped with clips for fixating slides.
The book entitled "The Invisible World" is a fascinating compliment to the microscope. It reveals the microbial world and scientific experiments. It is written with easy to understand language and vivid illustrations. Historical facts about microscopy and microorganisms are provided as well as experiments that can be conducted in a home setting using the Discovery Femto Polar microscope.
Features:
- Biological, 40x to 400x magnification.
- Monocular, rotating head 45° inclined
- Achromatic objectives, wide-field eyepiece, precise focusing
- Brightness adjustment, AC or battery powered
- Stage with clips, metal body
- Illustrated knowledge book included in kit
Specifications
Type
compound/optical, biological Head
monocular, rotatable 360°, inclined 45° Optics material
optical glass Magnification, x
40–400 Eyepiece tube diameter, mm
23,2 Eyepieces
WF10x Objectives
achromatic: 4x, 10x, 40x Revolving nosepiece
3 objectives Stage, mm
90x90mm with stage clips Stage moving range, using focusing mechanism, mm
0–10mm Condenser
N.A. 0.65 Diaphragm
disc diaphragm (6 holes) Focus
coaxial, coarse (0.5mm) and fine (0.002mm) Body
metal Backlight
LED Power source
3 AA batteries (included in kit) or 110-240V AC adapter (included in kit) Light source type
lower: 0.2W; upper 0.1W Operating temperature range, °C
°F+5 to +40 Additionally
LED dimmer Usage
General use product.
May be used by kids over 3 years old.User level
beginner Assembly and setup
extremely simple Application
School Research, Kid’s Education Illumination location
combined Research method
bright field In the box
- One microscope
- One eyepiece WF10x
- Three achromatic objectives 4x, 10x, 40x
- One AC adapter with power cord
- One dust cover
- One illustrated knowledge book, "The Invisible World"
- User manual and warranty card
